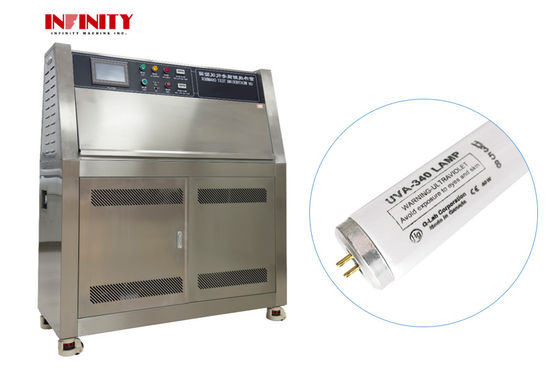

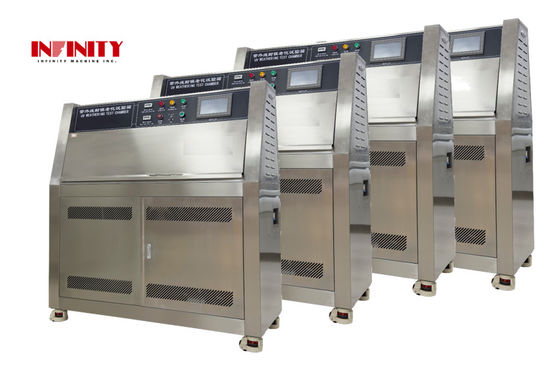

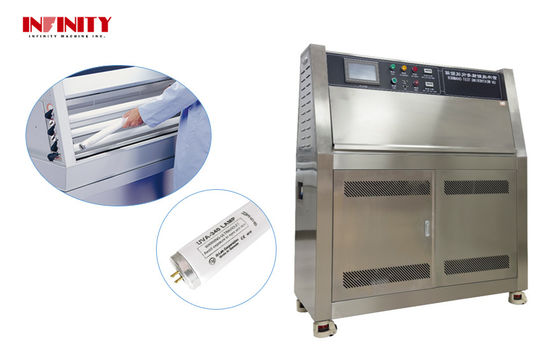

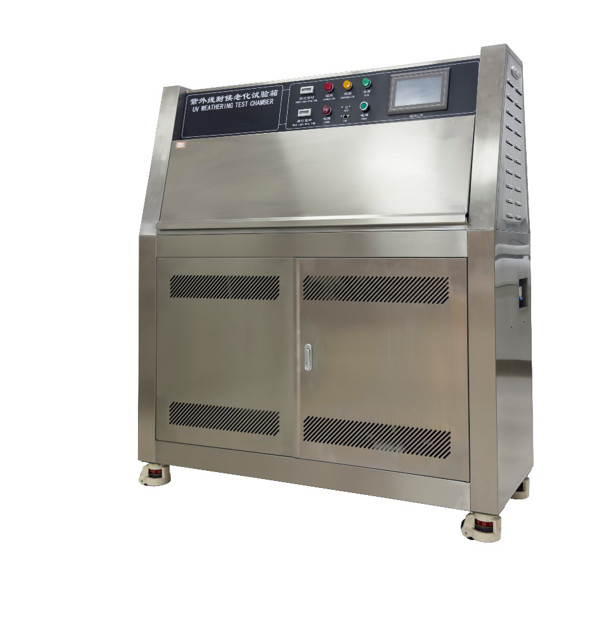

Name: UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
Brand: Infinity Machine International Inc.
SKU: IE60-Serie
Price: 100000 USD
Availability: InStock

Startseite Produkte Klimatestkammer

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

Produktdetails:

Herkunftsort:	IN CHINA HERGESTELLT
Markenname:	Infinity Machine Inc.
Zertifizierung:	ISO
Modellnummer:	IE60-Serie

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	Negotiate
Verpackung Informationen:	Durchsichtiges Blatt + Schwamm + Holzkarton
Lieferzeit:	20-30 Tage nach Bestellbestätigung
Zahlungsbedingungen:	T/T
Versorgungsmaterial-Fähigkeit:	200 Sets pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	UVtest-Kammer	Modell:	IE60-Serie
Temperaturbereich:	RT+20℃~70℃	Luftfeuchtigkeitsbereich:	≥90%RH
Anwendbarer Standard:	Die in Absatz 1 Buchstabe a genannten Anforderungen gelten für die in Absatz 1 Buchstabe b genannten	Besonderheit:	Automatische Bedienung der Gerätesteuerung, automatischer Testzyklus, Einsparung von Arbeitskräften,
Boxstruktur:	Innen- und Außenboxen: SUS304# Edelstahl wird in den Innen- und Außenboxen verwendet	Probenhalter:	Aluminiumrahmen-Basis-Rahmen-Vision-Platte, 24 Stück
Leistung:	Elektronisch	Garantie:	1 Jahr

UV Weathering Test Chamber Environmental Test Chambers IE6002 IE6002A

Equipment Overview

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

Applicable Standards

ASTM D4329, D499, D4587, D5208, G154, G53
ISO 4892-3, ISO 11507
EN 534; EN 1062-4; BS 2782; JIS D0205; SAE J2020

Key Features

Using the original American UV lamp, the light stability is good, and the test results are high reproducibility
Provides the best sunlight UV simulation, low maintenance and easy to use
Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency

Specification Parameters

Parameter	IE6002	IE6002A
Temperature range	RT+20℃~70℃
Humidity range	≥90%RH
Temperature fluctuation	±0.5℃
Temperature uniformity	≦1.0℃
Center distance inside the lamp	70mm
Distance between specimen and lamp center	50±3mm
Modulator tube	UVA-340 L=1200/40W, 8pcs	UVB-313 L=1200/40W, 8pcs
Irradiance	Adjustable within 1.2W/m²	Adjustable within 1.0W/m²
Ultraviolet wavelength	315-400nm	280-315nm
Effective irradiation region	900*210mm
Irradiated blackboard temperature	50℃~70℃
Internal dimension: WHD (mm)	1140400390
Outside box size: WDH (mm)	13005001360
Box structure	Indoor and outdoor boxes: SUS304# stainless steel
Sample holder	Aluminum frame type base frame vision plate, 24pcs
Standard sample size	75*290mm
Safety protection device	Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply	AC220V, 50Hz, 5KW

Special specifications need to be specified

Product Packaging

UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
